Survey & GPS Systems - Nikon
Automatic Levels |

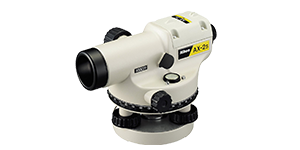

Nikon - Automatic
Level AX-2S |
| The
AX-2S features a built-in magnetically dampened compensator
that automatically levels the line of sight. Its airtight
design enables you to use even in dusty conditions or
light rain. In addition, a baseplate design offers a choice
of flat- or spherical-head tripod instrument mount. |
- High accuracy of ±2.5mm in 1km double-run leveling
- Bright, sharp, clear 20x image
- Minimum focusing distance for ease of use
|
|

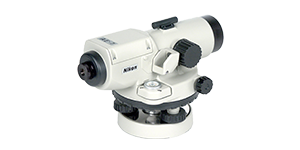

Nikon - Automatic
Level AS-2 |
| These waterproof
telescopes can be attached to flat- or spherical-head
tripods. A pent prism mirror permits the viewing of
the circular bubble as an erect image. They also come
with an optional, high- and low-power eyepiece lenses
in addition to diagonal eyepiece lenses for confined
spaces. |
- Accuracy of ±0.8mm in 1km double-run leveling
- If used with an optical micrometer, down to ±0.4mm
- Automatic compensator with wide working range
of ±
- Powerful 34x telescope with a bright ø45mm-dia
- Improved minimum focusing distance down to 1m/3.2f
|
|
Nikon - Automatic
Level AE-7 |
| These waterproof
telescopes with reduced minimum focusing distance of
0.3m (0.98ft) feature endless horizontal drive for smooth
precise pointing and angular measurement, and they can
be attached to either flat- or spherical- head tripods.
|
- Accuracy of ±1.0mm in 1km double-run leveling
- ±0.45mm when an optical micrometer is used
- Auto compensator with wide working range of ±16
- 30xz, ø40mm-dia. telescope
|
|
Nikon - Automatic
Level AP-8 |
| This AP-8 features
an engineer’s handy automatic level with accuracy of
±1.5mm in 1km double-run leveling and friction brake
for faster operation. Moreover, an endless horizontal
drive with control knobs on both sides, water-resistant
construction for use under dusty conditions or in light
rain. |
- 28x, ø30mm-dia. telescope
- 0.75m/2.5ft. minimum focusing distance
|
|
Nikon - Automatic
Level AC-2S |
| The economical, compact
and lightweight AC-2S features a built-in compensator
with magnetic damper that automatically levels line
of sight. With an endless horizontal tangent screw,
it is operable with either hand and employs a friction
brake for faster operation. |
- Attainable acuracy in 1km double-run leveling
±2mm
- 24x, ø30mm-dia. telescope for bright, erect images
- 0.75m/2.5ft. minimum focusing distance
|
|
|
