MVC-150
- Optional with single CIS or double CIS solution.
- Value counting function for mixed denomination banknotes for more than 60 currencies based on 200dpi CIS sensor(s) with IR and RBG light source.
- Serial number reading for several specifical currencies for double CIS model.
- Value counting with automatic currency recognition function.
- Automatic value counting with mixed currencies.
- Detailed report directly on the TFT LCD display.
- Able to connect receipt printers with serial port for counting result printing purpose.
- Auto/Manaual start and stop.
- Half Note/Chain Note/Double Note/Size Deteciton.
- UV,MG, MT, IR, Image Detections.

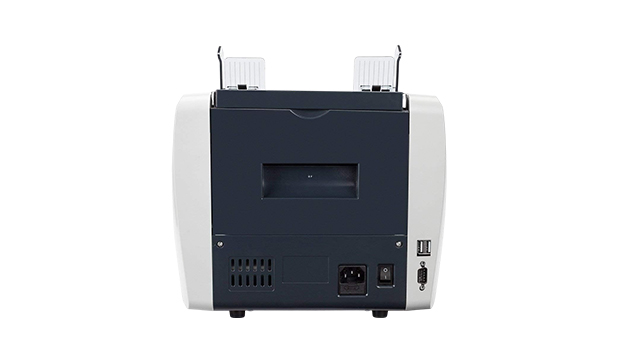

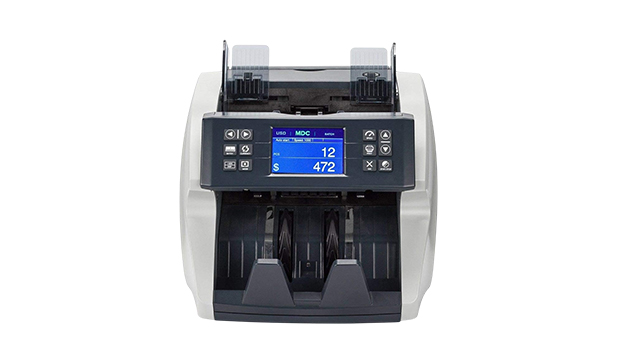

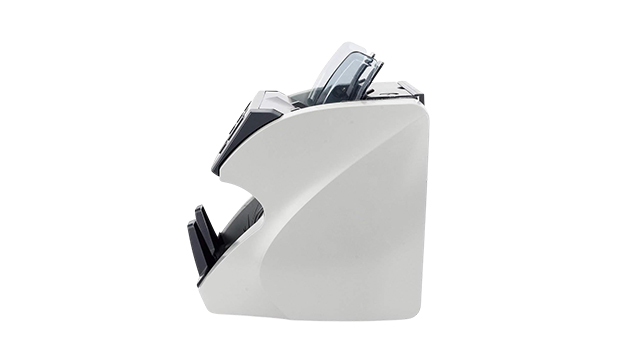

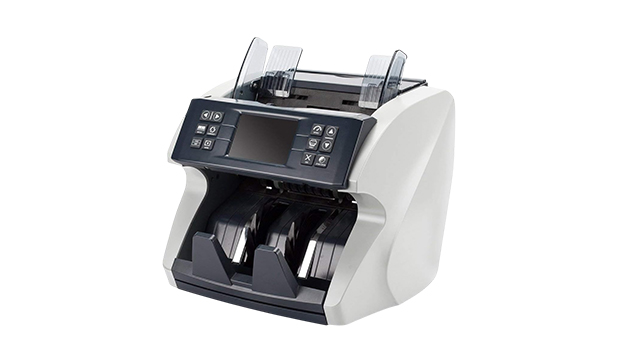

Multi-Currency Mixed-Denomination Value Counter - MVC-150
The MVC‑150 Value Counter, available through KBSE, is a cutting‑edge multi-currency, mixed-denomination counting machine designed for high-speed accuracy. It features dual CIS scanning technology and supports automatic currency recognition, enabling it to tally notes of different denominations and currencies in a single operation. Engineered with advanced counterfeit detection including UV, MG, IR, and image-based sensors the unit ensures reliable authenticity checks. The MVC‑150 supports serial number reading, batch counting, and value-count reporting via its clear TFT display. It handles large volumes comfortably, with feeder/hopper capacity up to 400–500 notes and stacker space for 200 notes, counting at speeds of 800–1000 notes/min for mixed value mode, and up to 1200 notes/min for single‑denomination tasks.
Specifications
- Hopper/stacker Capacity: 400-500notes/200notes
- Counting Speeds: *800 & 1000 for MDC & SDC/1200 for CNT
- Available Port: Serial Port RJ45 USB
- Power Input: 110-230VAC, 50/60HZ
- Power Consumption: 50W
- Unit Dimensions: 28×26×27CM/11×102"X10.6"
- Unit Box Size: 35CMX32CMX29CM/7KGS
- Master Carton: 67CM * 37CM * 32CM / 15 * G * 8
