RobotSLAM Handheld 3D Laser Scanner
- Direct geo-referencing
- Amazing cm-level accuracy

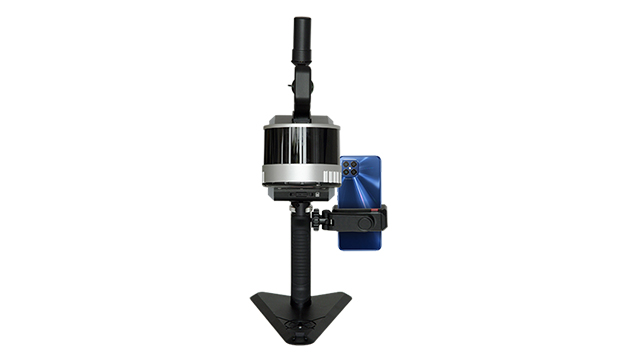

- Backpack 3-in-1 magic
- Abundant software functions

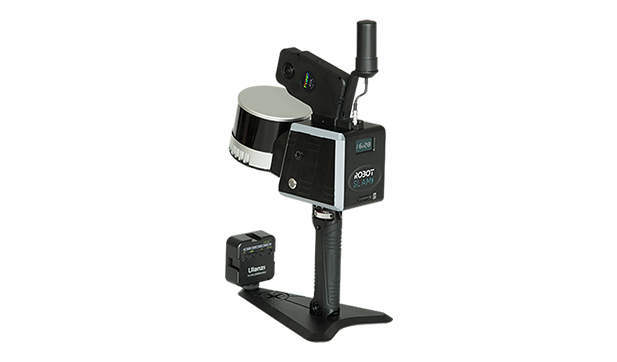

RobotSLAM Handheld 3D Laser Scanner
The RobotSLAM Handheld 3D Laser Scanner is a high-precision SLAM-based mapping device for fast, real-time 3D data capture in indoor, outdoor, and underground environments. It features a 16-channel laser scanner with up to 320,000 pts/s, 120 m range, and 360° × 285° field of view, delivering centimeter-level accuracy with integrated GNSS RTK. The scanner includes a panoramic camera (18 MP/5.7K) for colorized point clouds, a 512 GB SSD, and runs over 4 hours on hot-swappable batteries. Compact and rugged, it’s ideal for survey, construction, and GIS applications.
Specifications
- Laser Scanner: 16-channel① class 1M
- Measurement Rate: Max. 320,000 points/sec①
- Laser Safety Class: Class 1(IEC 60825-1:2014) eye-safe
- Laser Wavelength: 905 nm
- Echo Mode: 8-bit, dual return
- Measuring Range: 0.05-120 m
- Scanning Rate: 10 Hz
- Horizontal Angle Resolution: 0.18° (10 Hz)
- Relative Accuracy: best up to 1 cm
- GNSS DifferentiaL: GPS+Glonass+Beidou+Galileo multi-constellation tracking
- RTK Positioning Accuracy: RMS 1 cm+1 ppm
- Absolute Accuracy: best up to 3-5 cm
- Weight: 1.5 kg (handheld only)
- Dimension: 262x230x146 mm
- Power Supply: dual external Li-ion battery, hot swappable
- Endurance: single battery ≥2 hours, dual batteries ≥4 hours
- IP Protection: IP 64
- Device Connection: Wi-Fi or Ethernet cable
