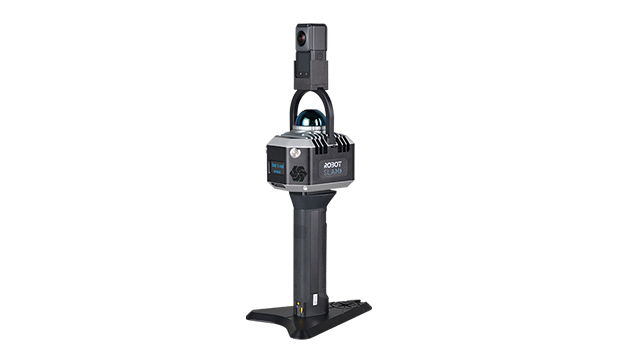

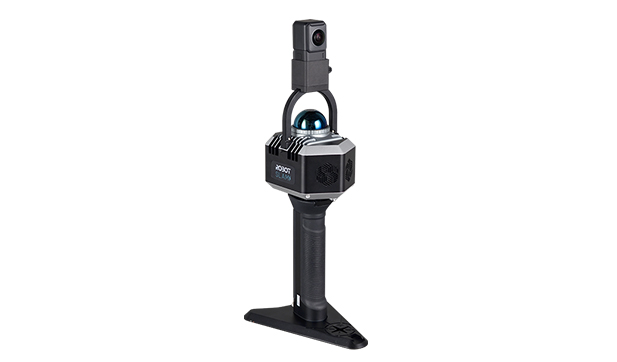

RobotSLAM Lite Handheld 3D Laser Scanner
- A compact unit, 1.29kg only
- Live cloud and trajectory
- Max. measuring range 70m
- One-key to color point cloud
RobotSLAM Lite Handheld 3D Laser Scanner
The RobotSLAM Lite is a compact handheld 3D laser scanner designed for fast, real-time mapping in indoor and outdoor environments. Weighing just 1.29 kg, it combines a laser scanner, IMU, panoramic camera, and touchscreen in a single unit. It captures up to 200,000 pts/sec, with a 70 m range and 1 cm accuracy, displaying point clouds in real-time. With 2–2.5 hours battery life, 512 GB SSD, and IP67 protection, it’s ideal for architecture, tunnel surveys, and emergency mapping—delivering accurate, colorized 3D scans with minimal setup.
Specifications
- Model: RobotSLAM Lite
- Laser Wavelength: 905 nm
- Laser Safety Class: CLASS 1 (IEC 60825-1:2014), eye-safe
- FOV: horizontal 360°, vertical -7°~52°
- Measurement Rate: 200,000 pts/sec
- Scanning Rate: 10 Hz
- IMU Module: built in, with push frequency 200 Hz (when enabled)
- Anti-interference: Available
- Dimension: 180x132x312 mm (w/o camera); 180x132x386 mm (with camera)
- Weight: 1.29kg
- Power Supply: handheld grip with inbuilt battery, cable-free connection
- Endurance: 2~2.5 hours
