South SkyCruiser VTOL Family Drone

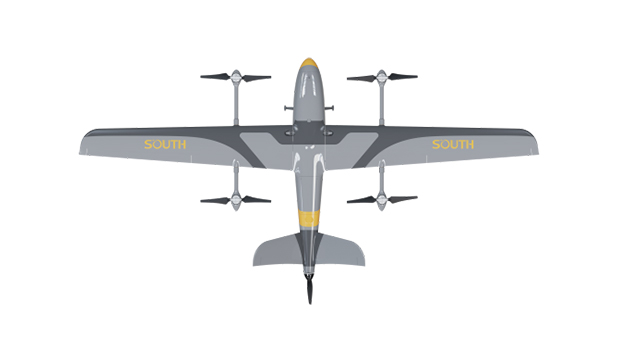

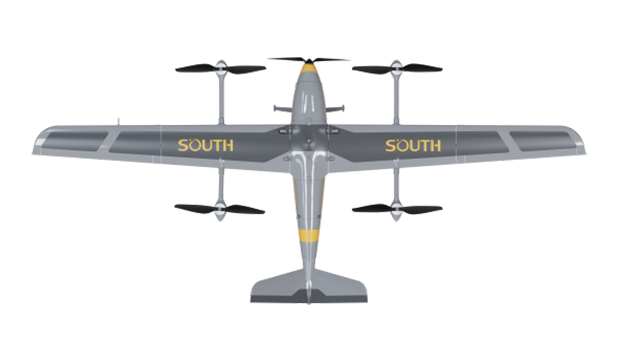

The SOUTH SkyCruiser VTOL (Fly2Map Series) is a family of vertical take-off and landing fixed-wing UAVs designed for professional aerial mapping, surveying, and inspection workflows. Available in three size-class variants—Rapido (~2.4 m wingspan, 1.3 kg payload, ~120 min endurance), Domino (~3.4 m wingspan, 5 kg payload, ~210 min), and Diverso (~4.1 m wingspan, 10 kg payload, ~240 min)—these aircraft offer direct geo-referencing via onboard PPK GNSS (GPS/GLONASS/Galileo/BeiDou) with centimeter-level accuracy. They cruise at speeds around 70 km/h, reaching up to 130 km/h, with ranges of 210–280 km and supported flight ceilings up to 4,500 m ASL, while handling Beaufort Scale 6 winds. Payload options vary by model and include RGB, multi-spectral, thermal, and LiDAR sensors—ideal for large-area imaging and 3D modeling missions.
Specifications
- Models: Rapido/Domino/Diverso
- Dimension: 2400x1150x370 mm, 3378x1500x500 mm, 4128x1927x749 mm
- Max. Payload Capacity: Rapido: 1.3 kg, Domino: 5 kg, Diverso: 10 kg
- Max. Ceiling: 4000 m ASL, 4500 m ASL, 4200 m ASL
- Max. Cruising Speed: 110 km/h, 130 km/h, 130 km/h
- Regular Cruising Speed: 70 km/h, 70 km/h, 72 km/h
- Flight Endurance: 120 min, 210 min, 240 min
- Wind Resistance: beaudfort scale 6
- Airborne GNSS Module: GPS + Glonass + Galileo + Beidou tracking, for RTK/PPK
- Airborne GNSS Accuracy: 1cm±1ppm when fixed
