South AL-32
- 32X, 28X, 24X, 20X Telescope.
- Magnetic Damping Compensator.
- Metal Housing with Excellent Protection.
Product Description

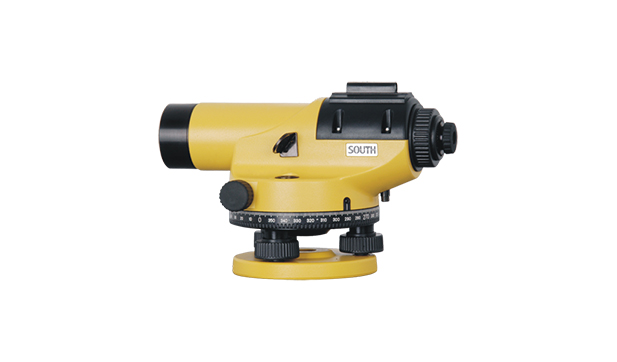

kbse proudly serves as the authorized provider of the China AL‑32 automatic level in Pakistan, offering survey instruments that deliver excellent value without compromising on quality. This model features 32× magnification, a minimum focusing distance of 0.3 m, and a magnetic damping compensator with ±15′ range, ensuring fast and stable self‑leveling for precise topographic work. Crafted with an IP65-rated rugged body, the AL‑32 resists dust and water, making it ideal for demanding field environments. With cross reticle optics, a 1°20′ (2.6m /100m) field of view, and ＜2s compensator accuracy, it achieves ±1.0 mm deviation over 1 km double‑run leveling. Lightweight at ~1.8 kg, the instrument is easy to carry and quick to set up on-site, while offering dependable measurement and long-term durability.
Specifications
- Image: Erect
- Reticle: Cross Reticle
- Field of View: 1°20′ (2.6m /100m)
- Minimum Focus Distance: 0.3m
- Compensator Type: Magnetic Damping
- Protection Class: IP54
- Working Temperature: -20℃ ～ +50℃
- Storage Temperature: -40℃ ～ +70℃
- Net Weight per Unit: 1.8kg
