South NTS-332R10
- 2” Angle Accuracy
- Upgraded EDM with 1000m non-prism range
- Simple but practical onboard software
- Easy-to-read LCD screen
- Easy connectivity by USB and Bluetooth*

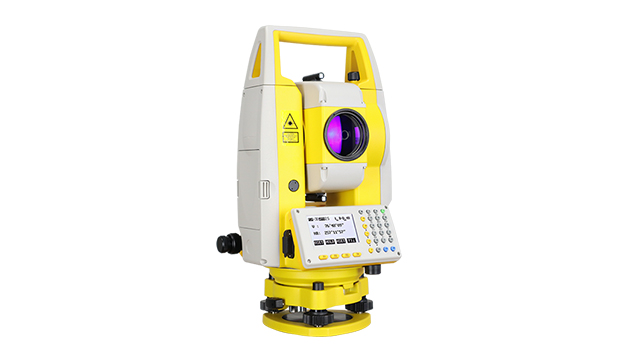

South Manual Reflectorless Total Station - South NTS-332R10
The SOUTH NTS‑332R10 is a manual reflectorless total station designed for precise surveying and construction layout tasks. It offers 2″ angular accuracy, with a measuring range of up to 1,000 m without a prism and 5,000 m with a prism. The fast EDM delivers results in just 1.2 s (fine mode), while the 30× telescope provides clear optics with a minimum focus of 1.5 m. It features a dual-axis compensator, laser plummet, and a 2.7″ LCD screen with an alphanumeric keypad for easy operation. Data transfer is supported via USB flash drive and Bluetooth, and the 7.4 V lithium battery offers up to 8 hours of field use. With its IP54 rating, ~6 kg weight, and reliable performance, it's ideal for daily fieldwork in varied conditions.
Specifications
- Reflectorless: 1000m
- Single Prism: 5000m
- Accuracy Non Prism: 3+2ppm
- Atmospheric Correction: Manual input, Auto correction
- Distance Reading: Max: 99999999.999 Min: 1mm
- Accuracy: 2"
- Method: Absolute, encoding
- Disk Diameter: 79mm
- Angle Reading: Min: 1"
- Tube Length: 152mm
- Muitiple/Additive Constant: 100/0 RMS
- Keyboard: Alphanumeric 28 Keys
- Display: 2.7 inches Black & White LCD
- Resolution: 160*96 dpi
- Memory: 80000 points
- System: Liquid, Dual axis
- Accuracy: ±1.5mm @1.5m protection
- Laser Brightness: 5 levels adjustable
- Laser Class: Class 2
- Magnification: 3x
- Dimension: 206*200*353mm
